The Best SmartOTDR Handheld Fiber Tester

The Best SmartOTDR Handheld Fiber Tester

The??SmartOTDR essential handheld fiber tester is an affordable, easy-to-use device for techs at any level, with robust wireless connectivity options that increase productivity anywhere. It integrates all the essential fiber test requirements into a single device with OTDR measurement, fiber end face analysis, optical loss testing and visual fault locator.

MORE INFO
ASK A QUOTE

Description

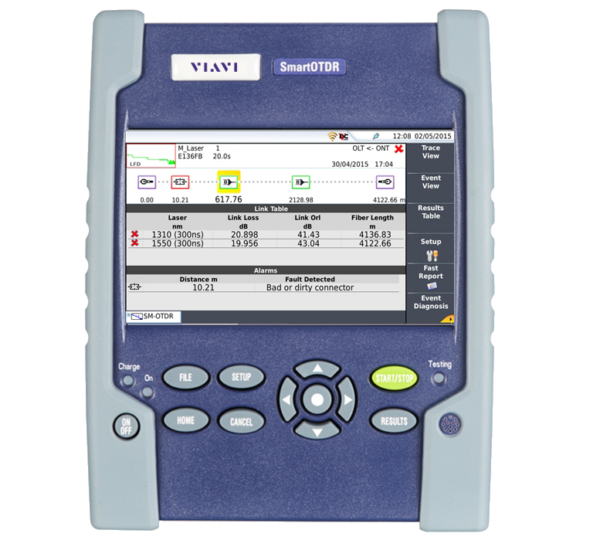

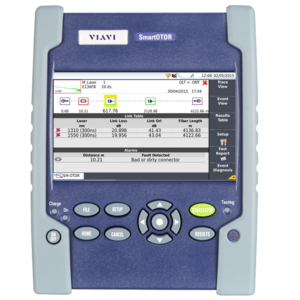

SmartOTDR Handheld Fiber Tester

Benefits

  • Ensures fast and easy measurements
    One touch operation, automatic analysis, and tailored OTDR user interface for different skill level
  • Manage data from anywhere in the network
    Several connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) enable remote control as well as data and work-order transfers to-and-from tablets, smartphones, and computers.
  • Reduces cost of ownership
    Three year warranty as standard coverage
  • Optimizes?? field operations
    Light, ultra compact, hands-free design and an extended autonomy up to 20 hours
  • Remotely coach and support field techs with Smart Access Anywhere (SAA)

Applications

  • Characterize point-to-point access & metro fiber networks
  • Qualify and troubleshoot FTTH/PON networks
  • Qualify and troubleshoot singlemode??FTTA/DAS front haul

Key Features

  • Single-/dual-/tri-wavelength versions with 1310, 1550, and in-service 1625 or 1650 nm wavelengths
  • PON optimized to test through a 1×128 splitter
  • Automated fiber inspection pass/fail analysis software
  • Integrated CW light source on OTDR port
  • Built-in optical power meter and VFL options
  • ??Large 5-inch touch screen display

Ordering Information

SmartOTDR Configurations Part Number

All configurations include a hands-free soft case with neck strap, a stylus for capacitive touch screen, a Lithium-Polymer battery and SC/PC or SC/APC connector(s).

SmartOTDR 1550nm A-range handheld tester E100A-PC/-APC
SmartOTDR filtered 1650 nm A-range handheld tester E118FA65-APC
SmartOTDR filtered 1650 nm A-range handheld tester with broadband and PON-XGPON (1490/1550/1578 nm) power meters E118FA65PPM-APC
SmartOTDR 1310/1550 nm A-range handheld tester E126A-PC/-APC
SmartOTDR 1310/1550/filtered 1650 nm A-range handheld tester E138FA65-PC/-APC
SmartOTDR 1310/1550 nm B-range handheld tester E126B-PC/-APC
SmartOTDR 1310/1550/filtered 1625nm B-range handheld tester E136FB-PC/-APC
SmartOTDR 1310/1550/filtered 1650 nm B-range handheld tester E138FB65-APC

Additional OTDR Connector Adapters

SC universal adapter EUSCADS
FC universal adapter EUFCADS
LC universal adapter EULCADS

Accessories

Additional Lithium Polymer battery E10LIPO
Additional hands-free soft case with neck strap E10GLOVE
Additional stylus for capacitive touch screen EHVT-STYLUS
Large soft carrying case (optional) E40SCASE1
12 V car lighter adapter (optional) E40LIGHTER
EU/US-to-India type D power adapter (optional) EINDIADPLUG
USB GPS receiver EUSBGPSRECEIVER

Optional Tools

VFL with 2.5 mm UPP adapter E10VFL
Optical power meter option (same port as OTDR) E10PM
MP-60 USB optical power meter with 2.5 and 1.25 mm UPP adapters MP-60A
MP-80 USB high-power optical power meter with 2.5 and 1.25 mm UPP adapters MP-80A
P5000i digital microscope kit with 7 tips ESDFSCOPE5KI
Built-in WiFi / Built-in Bluetooth E10WIFI / E10BLUE
External WiFi USB dongle / External Blutooth USB dongle E60EWIFI / E60EBLUE

Software Options

FTTH-SLM Base – Tailored OTDR App. for FTTH Networks (Basic PON Architectures) ESMARTFTTH-100-BASE
FTTH-SLM Premium – Tailored OTDR App. for FTTH Networks (Advanced PON Architectures, including Unbalanced/tapered Splitters) ESMARTFTTH-100
FTTH-SLM Assistant – Simplified Set-up Mode for FTTH-SLM Base or FTTH-SLM Premium Apps EFTTHSLM-ASSIST-100
FTTA-SLM – Tailored OTDR App. for FTTA Networks ESMARTFTTA-100
Enterprise-SLM – Tailored OTDR App. for Enterprise & Datacenter Networks ENTERPRISE-100
CABLE-SLM – Management & Automation of High Count Fiber Cables OTDR Measurements ESMARTCABL-100
SMARTACQ – Automatic Multi-Pulses OTDR Measurements ESMARTACQ-100
SmartAccess Anywhere – Remote Access & Control from Anywhere SAA-100-L2
GPS – Embedded GPS Coordinates into Test Files and Reports EGPS
